SPECIFICATIONS

APP Compatibility: Viidure

Assembly Mode: Portable Recorder

Audio Recorded: Yes

Battery: Built-In

Brand Name: OMGO

Built-in Screen: Yes

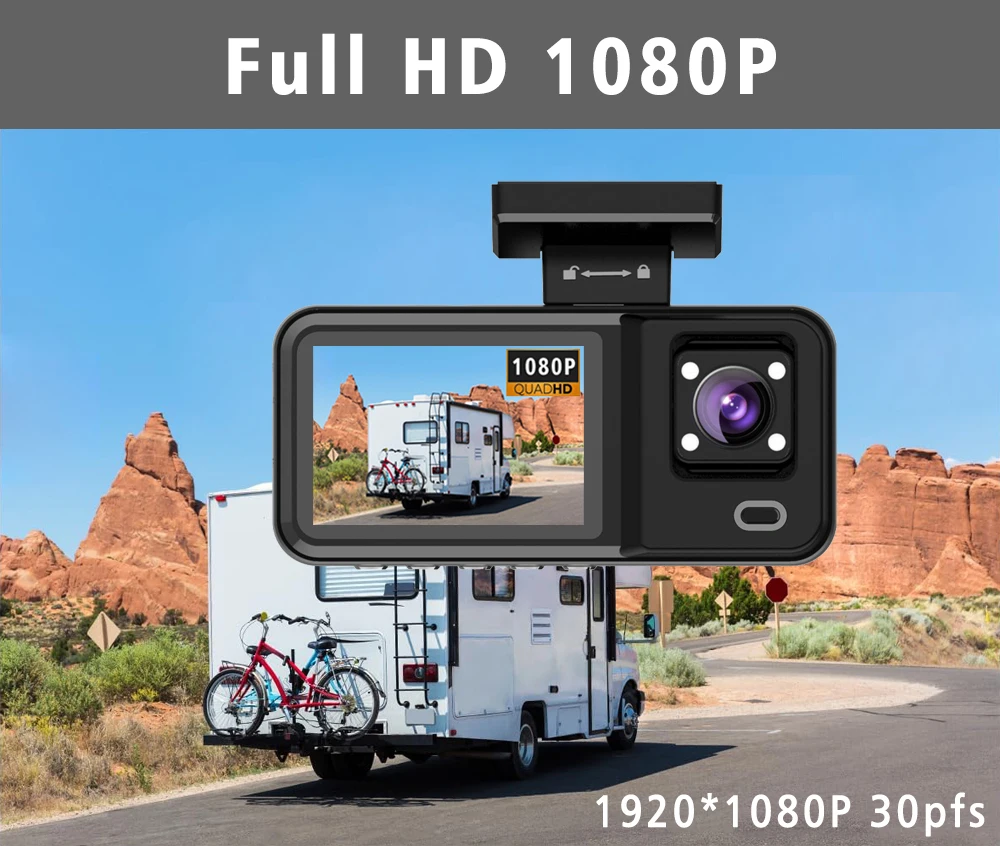

Camera Resolution: 1920x1080

Chipset Manufacturer: Generalplus

Display: IPS

Frames Per Second: 30

High-concerned chemical: None

Interface: USB 2.0,AV-In, Wi-fi, Micro SD/TF

Batteries Included: No

Item Type: Car DVR

Loop-Cycle Recording Feature: Yes

Max External Memory: 128G

Maximum Video Frame Rate: 30

Memory Card Required Reading Speed: Class 10

NightShot Function: Yes

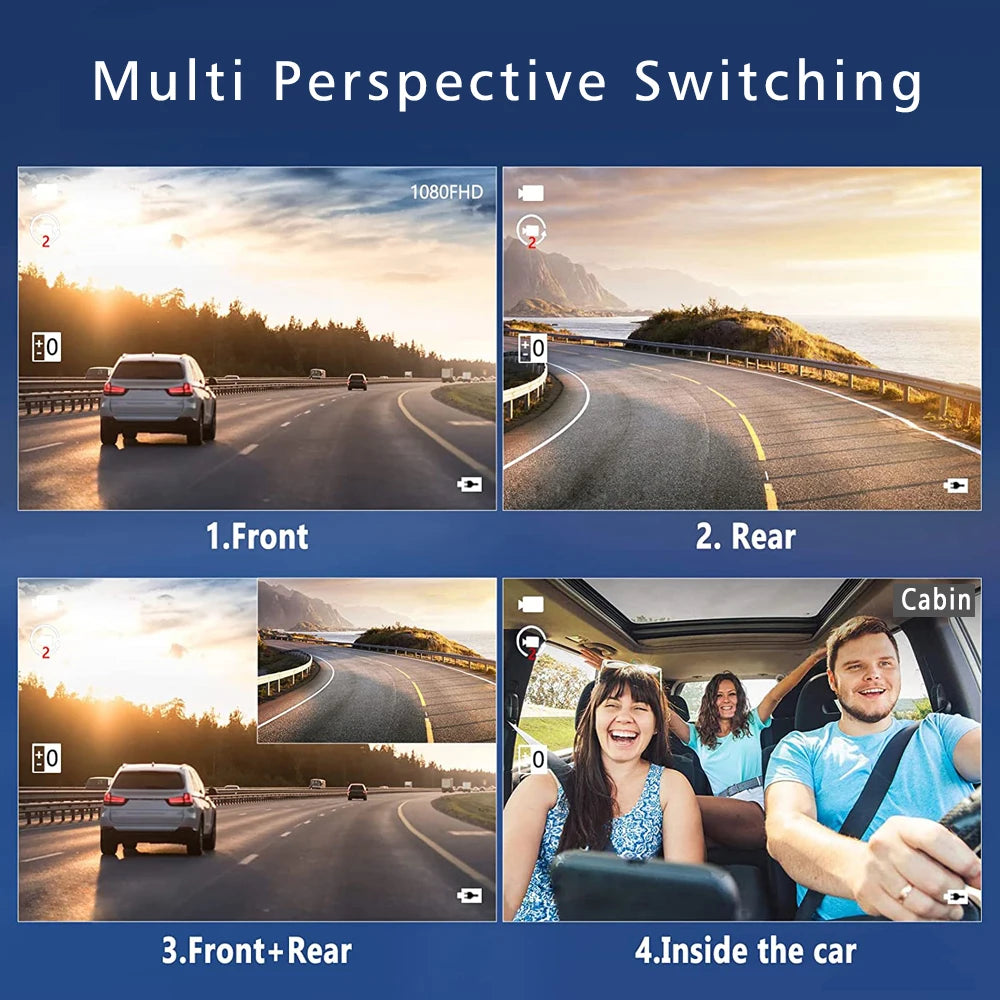

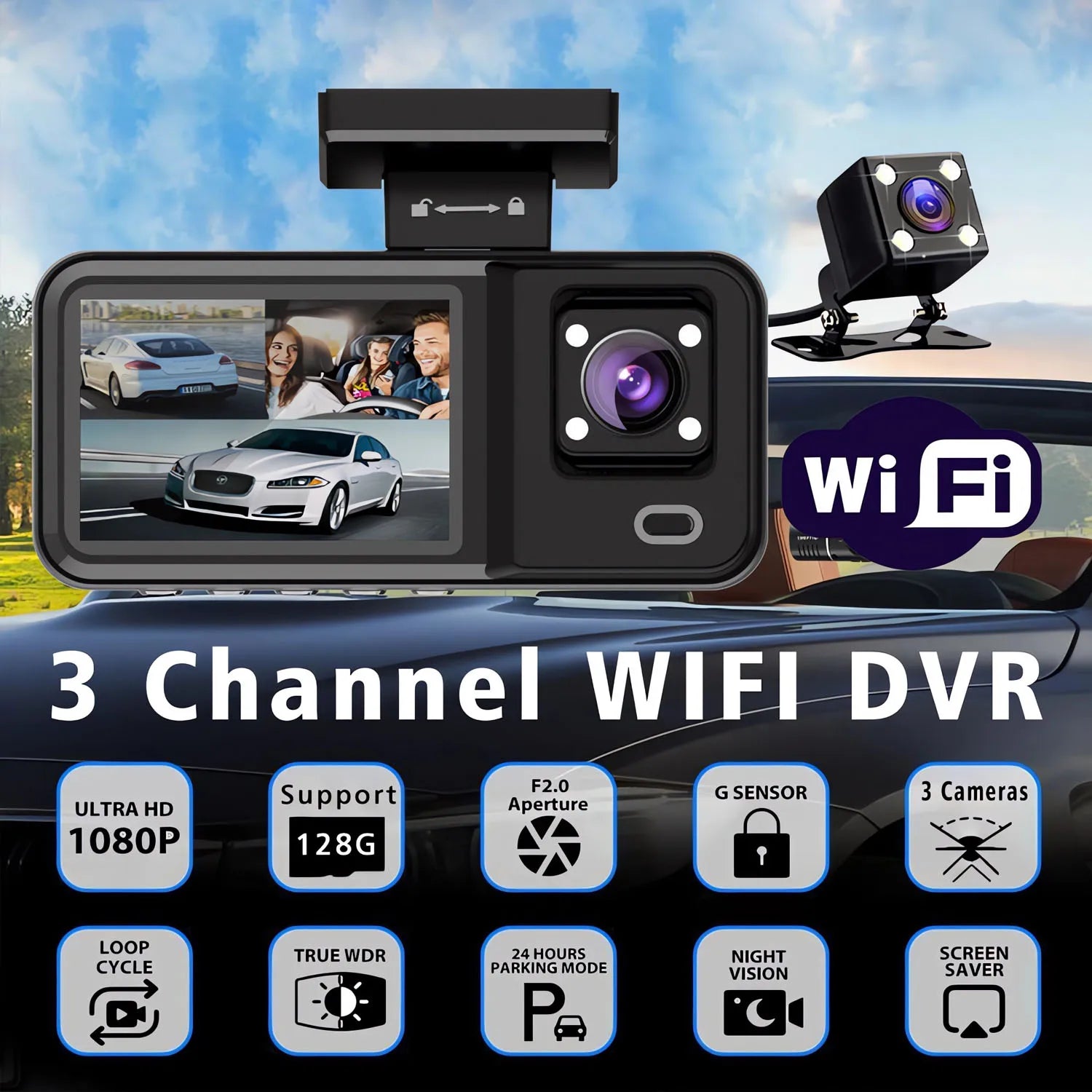

Number Of Lenses: 3

OSD Language: Arabic, Chinese (Simplified), English, French, German, Hebrew, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Origin: Mainland China

Original Package: Yes

Pixels: 800Mega

Power Source: Corded Electric

Rear Camera: Yes

Special Features: G-Sensor, Digital zoom, motion detection, SD/MMC card, Anti Surge Voltage Impact, Anti Fog, Anti Vibration, Real Time Surveillance, Automatic White Balance, Wide Dynamic Range, wifi function, Parking Monitor,3D DNR

Video Format: AVI

About Formatting The Memory Card(Up To 128G):

When installing a memory card for the first time, be sure to format it on the DVR. After formatting, the DVR can correctly match the memory card.

Formatting Steps: After installing the memory card, enter the DVR menu, select Format, and click Format to format the card.(Important: Formatting the memory card on the computer is an incorrect operation. Please be sure to format the memory card on the DVR's menu option.)

Before connecting to the DVR on the phone, it is necessary to install the WIFI connection app "Viidure APP" in advance.You can search for "Viidure" installation in the Apple App Store or Google App Market.

Steps:
(1) In standby mode, long press the "M" key to enter the DVR menu and enter the WIFl setting menu.
(2)In the wifi menu of the DVR, check to obtain the wifi SSID name and password;

(3)Open the "Viidure" APP on your phone, enter the configuration mode, turn on the wifi function of the phone, follow the prompts to find the SSID wifi signal of the DVR and enter the password to connect.
(4)After successful configuration, you can connect and operate the DVR through the "Viidure" APP.

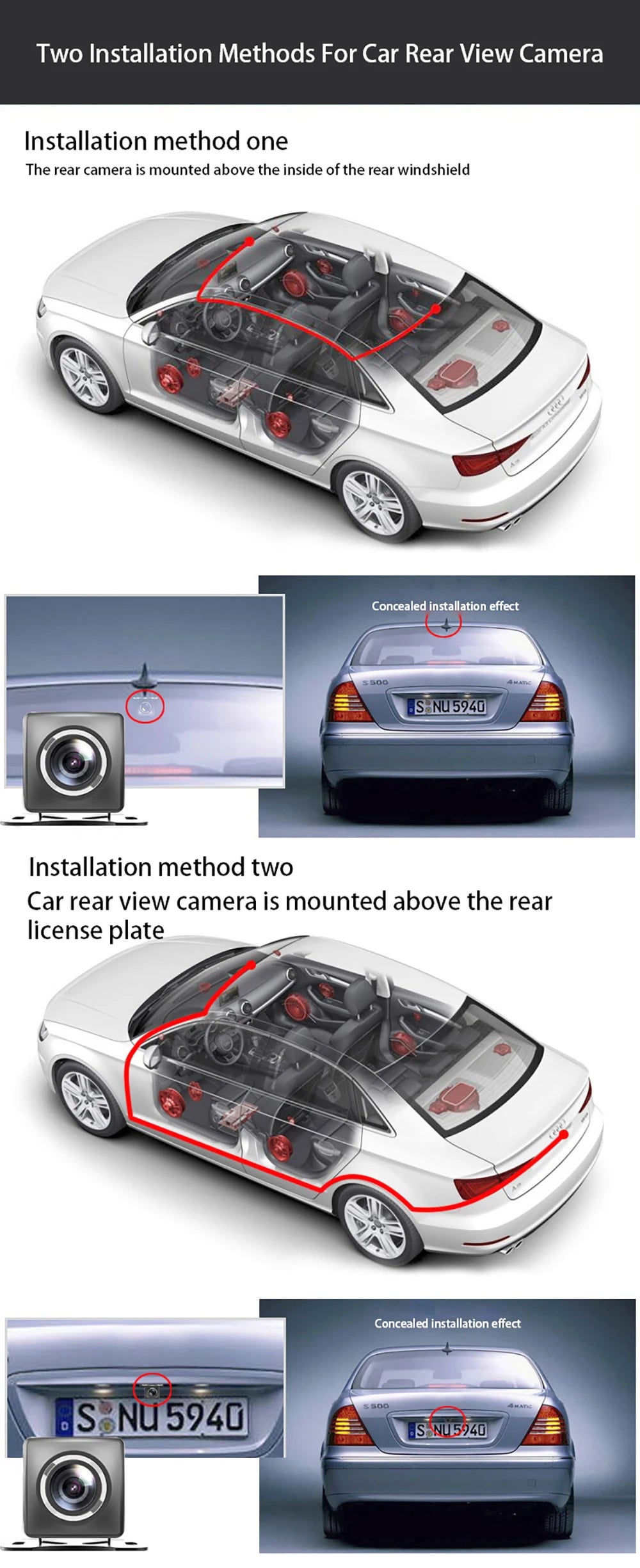

About The Reversing Assist Function:

If the kit you ordered includes a rearview camera and you need to implement the reversing assist function, you need to connect the red signal wire of the rearview camera to the car's reversing light (the light will come on when reversing). If you don't need the reverse assist function, just disconnect the red signal wire and leave it unconnected.

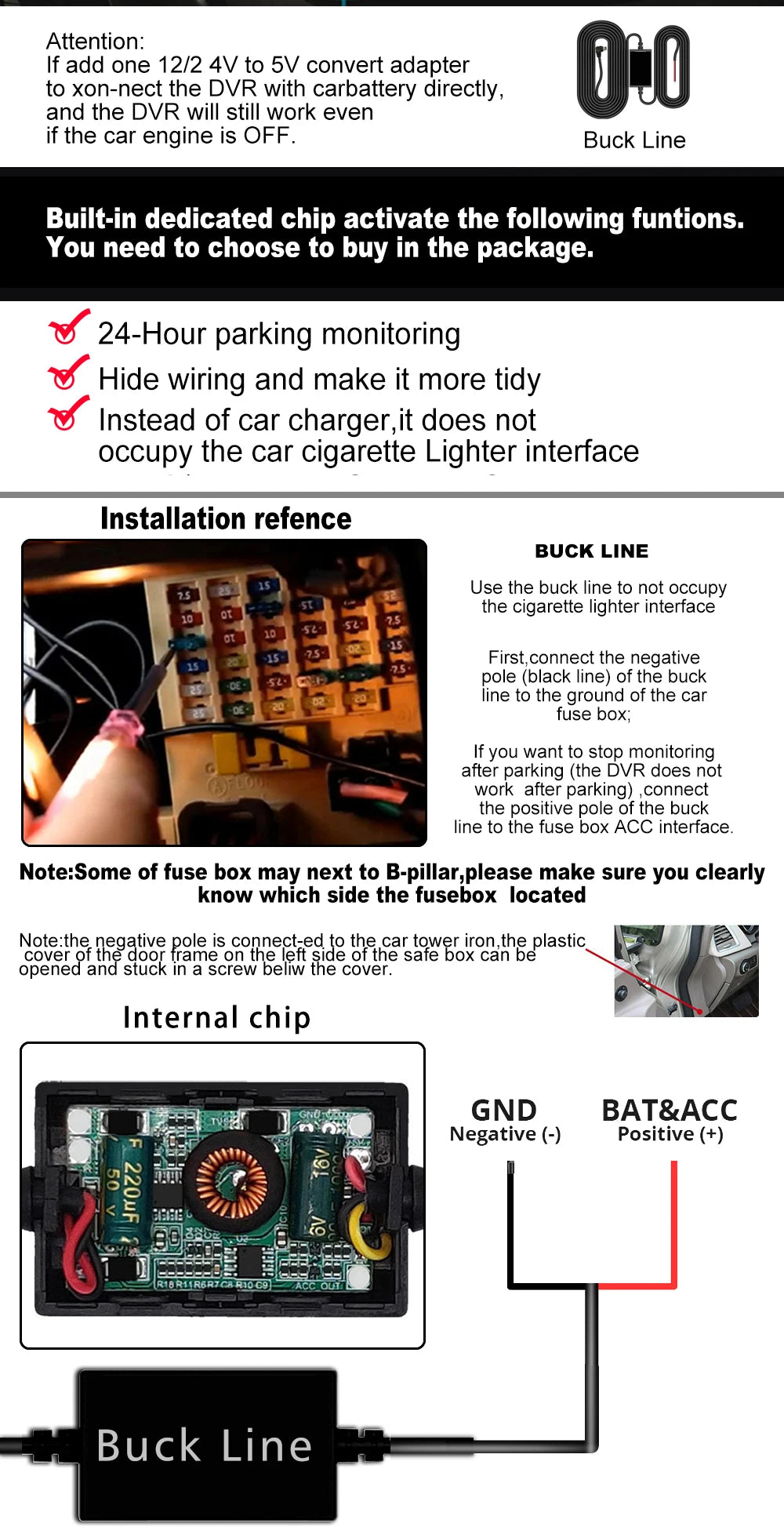

About 24-Hour Parking Monitoring:

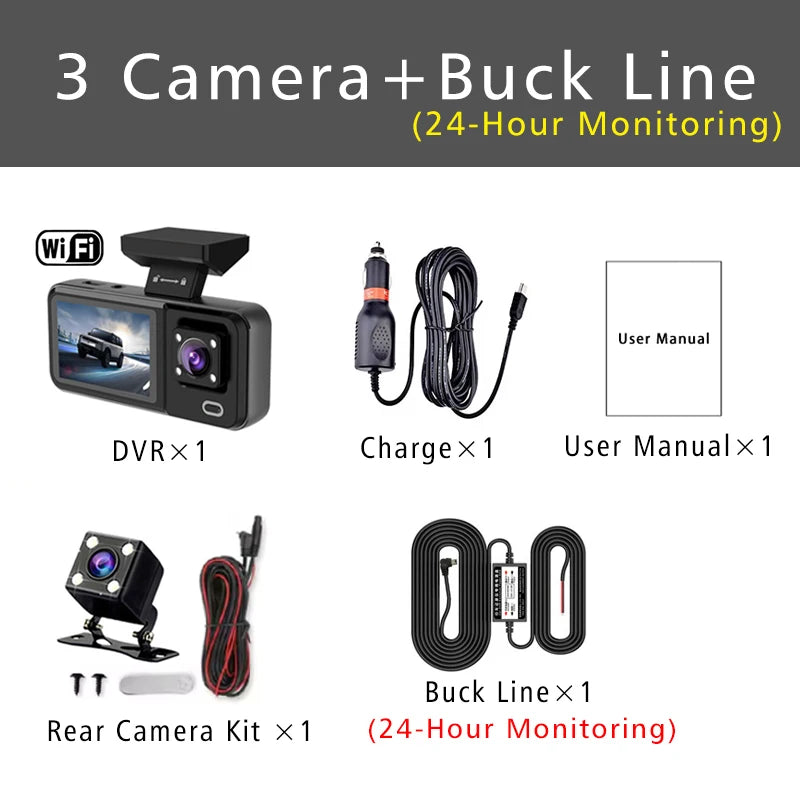

If you need the 24-hour parking monitoring function, you can order the corresponding Buck Line accessories to replace the car charger. Through Buck Line, the DVR power can be obtained directly from the car battery or car ACC, so that the DVR can maintain normal recording work even when the car is turned off.(Since different car models have different battery interfaces or ACC interfaces, it is not recommended to install it by yourself. It is recommended to find a professional to install the Buck Line.)
